Manages time stepping coordination between master and slave processes. More...

#include <ReservoirCouplingTimeStepper.hpp>

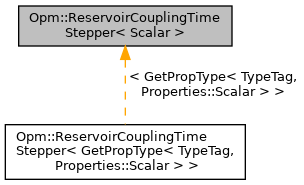

Inheritance diagram for Opm::ReservoirCouplingTimeStepper< Scalar >:

Public Types
using	MessageTag = ReservoirCoupling::MessageTag

using	Potentials = ReservoirCoupling::Potentials< Scalar >

using	Seconds = ReservoirCoupling::Seconds

Public Member Functions
	ReservoirCouplingTimeStepper (ReservoirCouplingMaster< Scalar > &master)
	Construct a time stepper for coordinating master-slave time stepping. More...

const Parallel::Communication &	comm () const
	Get the MPI communicator for master-to-master communication. More...

MPI_Comm	getSlaveComm (int index) const
	Get the MPI communicator for a specific slave process. More...

std::size_t	numSlaves () const
	Get the total number of active slave processes. More...

ReservoirCoupling::Logger &	logger () const
	Get the logger for reservoir coupling operations. More...

double	maybeChopSubStep (double suggested_timestep_original, double elapsed_time) const
	Potentially adjust time step to align with slave report boundaries. More...

void	receiveNextReportDateFromSlaves ()
	Receive next report dates from all active slave processes. More...

void	resizeNextReportDates (int size)
	Resize the internal storage for slave next report times. More...

const Schedule &	schedule () const
	Get the simulation schedule. More...

bool	slaveIsActivated (int index) const
	Check if a specific slave process has been activated. More...

const std::string &	slaveName (int index) const
	Get the name of a specific slave process. More...

double	slaveStartDate (int index) const
	Get the simulation start date for a specific slave. More...

double	slaveActivationDate (int index) const
	Get the activation date for a specific slave. More...

void	sendNextTimeStepToSlaves (double timestep)
	Send the next time step size to all active slave processes. More...

void	setSlaveNextReportTimeOffset (int index, double offset)
	Set the next report time offset for a specific slave. More...

Detailed Description

template<class Scalar>
class Opm::ReservoirCouplingTimeStepper< Scalar >

Manages time stepping coordination between master and slave processes.

This class handles the synchronization of time steps and report dates between the master and slave processes in reservoir coupling simulations. It is responsible for:

Coordinating time step sizes across master and slave processes
Receiving next report dates from slave processes
Sending time step information to slaves
Adjusting time steps to align with slave report boundaries
Managing slave activation dates and simulation start dates

The class ensures that the master and all slaves advance through simulation time in a coordinated manner, respecting individual slave report schedules while maintaining overall simulation consistency.

Template Parameters

Scalar Floating-point type for time and rate values (typically double or float)

Note: This class holds a reference to the parent ReservoirCouplingMaster object and should only be used within the scope of that object's lifetime

See also: ReservoirCouplingMaster

Member Typedef Documentation

◆ MessageTag

template<class Scalar >

using Opm::ReservoirCouplingTimeStepper< Scalar >::MessageTag = ReservoirCoupling::MessageTag

◆ Potentials

template<class Scalar >

using Opm::ReservoirCouplingTimeStepper< Scalar >::Potentials = ReservoirCoupling::Potentials<Scalar>

◆ Seconds

template<class Scalar >

using Opm::ReservoirCouplingTimeStepper< Scalar >::Seconds = ReservoirCoupling::Seconds

Constructor & Destructor Documentation

◆ ReservoirCouplingTimeStepper()

template<class Scalar >

Opm::ReservoirCouplingTimeStepper< Scalar >::ReservoirCouplingTimeStepper ( ReservoirCouplingMaster< Scalar > & master )

Construct a time stepper for coordinating master-slave time stepping.

Parameters

master Reference to the parent ReservoirCouplingMaster object

Member Function Documentation

◆ comm()

template<class Scalar >

const Parallel::Communication & Opm::ReservoirCouplingTimeStepper< Scalar >::comm ( ) const

inline

Get the MPI communicator for master-to-master communication.

Returns: Reference to the parallel communication object

◆ getSlaveComm()

template<class Scalar >

MPI_Comm Opm::ReservoirCouplingTimeStepper< Scalar >::getSlaveComm ( int index ) const

inline

Get the MPI communicator for a specific slave process.

Parameters

index Index of the slave process

Returns: MPI communicator handle for communication with the specified slave

◆ logger()

template<class Scalar >

ReservoirCoupling::Logger & Opm::ReservoirCouplingTimeStepper< Scalar >::logger ( ) const

inline

Get the logger for reservoir coupling operations.

Returns: Reference to the logger object for this coupling session

◆ maybeChopSubStep()

template<class Scalar >

double Opm::ReservoirCouplingTimeStepper< Scalar >::maybeChopSubStep	(	double	suggested_timestep_original,
		double	elapsed_time
	)		const

Potentially adjust time step to align with slave report boundaries.

This method checks if the suggested time step would cause the master simulation to advance past any slave's next report time. If so, it "chops" the time step to ensure the master stops at the slave's report boundary, allowing for proper synchronization between master and slave processes.

Parameters

suggested_timestep_original	The original suggested time step size (in seconds)
elapsed_time	Elapsed time from the beginning of the simulation (in seconds)

Returns: Adjusted time step that respects slave report boundaries

Note: This is crucial for maintaining time step synchronization in coupled simulations

◆ numSlaves()

template<class Scalar >

std::size_t Opm::ReservoirCouplingTimeStepper< Scalar >::numSlaves ( ) const

inline

Get the total number of active slave processes.

Returns: Number of slaves that have been started

◆ receiveNextReportDateFromSlaves()

template<class Scalar >

void Opm::ReservoirCouplingTimeStepper< Scalar >::receiveNextReportDateFromSlaves ( )

Receive next report dates from all active slave processes.

This method receives the next report time from each slave process via MPI communication. The times are stored as offsets from the simulation start time and used to coordinate time stepping between master and slaves.

Note: This is a blocking operation that waits for all slaves to send their data; Must be called after slaves have determined their next report times

◆ resizeNextReportDates()

template<class Scalar >

void Opm::ReservoirCouplingTimeStepper< Scalar >::resizeNextReportDates ( int size )

inline

Resize the internal storage for slave next report times.

Parameters

size	Number of slave processes to allocate storage for

◆ schedule()

template<class Scalar >

const Schedule & Opm::ReservoirCouplingTimeStepper< Scalar >::schedule ( ) const

inline

Get the simulation schedule.

Returns: Reference to the Schedule object containing timing and control information

◆ sendNextTimeStepToSlaves()

template<class Scalar >

void Opm::ReservoirCouplingTimeStepper< Scalar >::sendNextTimeStepToSlaves ( double timestep )

Send the next time step size to all active slave processes.

This method broadcasts the time step size that slaves should use for their next simulation step via MPI communication. This ensures all processes advance through simulation time in a coordinated manner.

Parameters

timestep Time step size to send to slaves (in seconds)

Note: This is a blocking operation that waits for all slaves to receive the data

◆ setSlaveNextReportTimeOffset()

template<class Scalar >

void Opm::ReservoirCouplingTimeStepper< Scalar >::setSlaveNextReportTimeOffset	(	int	index,
		double	offset
	)

inline

Set the next report time offset for a specific slave.

Parameters

index	Index of the slave process
offset	Time offset from simulation start to the slave's next report time (in seconds)

◆ slaveActivationDate()

template<class Scalar >

double Opm::ReservoirCouplingTimeStepper< Scalar >::slaveActivationDate ( int index ) const

inline

Get the activation date for a specific slave.

Parameters

index Index of the slave process

Returns: Activation date as time offset (in seconds)

◆ slaveIsActivated()

template<class Scalar >

bool Opm::ReservoirCouplingTimeStepper< Scalar >::slaveIsActivated ( int index ) const

inline

Check if a specific slave process has been activated.

Parameters

index Index of the slave process

Returns: true if the slave is activated, false otherwise

◆ slaveName()

template<class Scalar >

const std::string & Opm::ReservoirCouplingTimeStepper< Scalar >::slaveName ( int index ) const

inline

Get the name of a specific slave process.

Parameters

index Index of the slave process

Returns: Reference to the name string for the specified slave

◆ slaveStartDate()

template<class Scalar >

double Opm::ReservoirCouplingTimeStepper< Scalar >::slaveStartDate ( int index ) const

inline

Get the simulation start date for a specific slave.

Parameters

index Index of the slave process

Returns: Simulation start date as time offset (in seconds)

The documentation for this class was generated from the following file:

ReservoirCouplingTimeStepper.hpp
